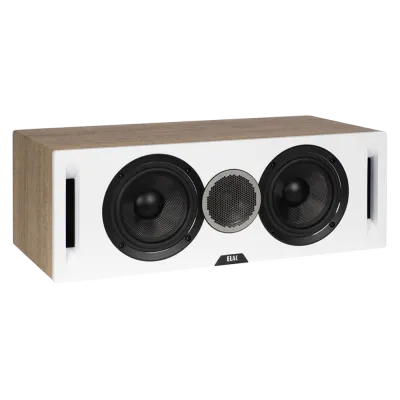

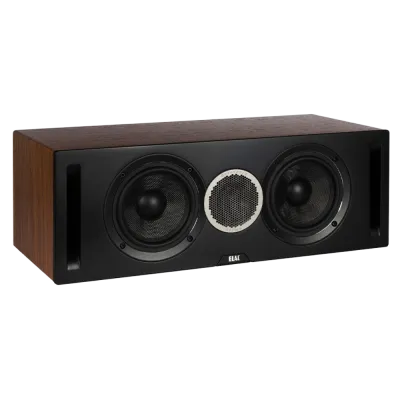

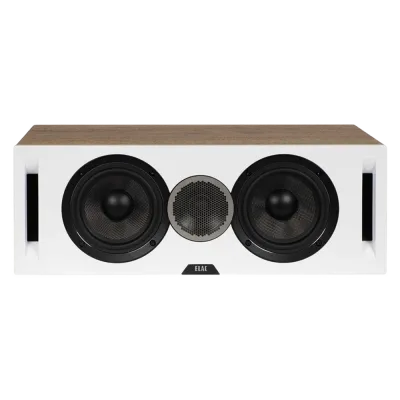

Hear it live in our showroomThe ELAC Debut Reference DCR52 is a two-way, bass-reflex centre speaker designed as the centre channel of a home cinema within the Debut Reference series. The design combines a 1" soft-dome tweeter in a waveguide with a pair of 5-1/4" aramid-fibre mid-bass drivers, together covering 55 Hz – 35 kHz with a crossover frequency of 2,200 Hz. A nominal impedance of 8 Ω, sensitivity of 87 dB (2.83 V/1 m) and 120 W power handling allow use with everyday AV receivers as well as more powerful power amplifiers.

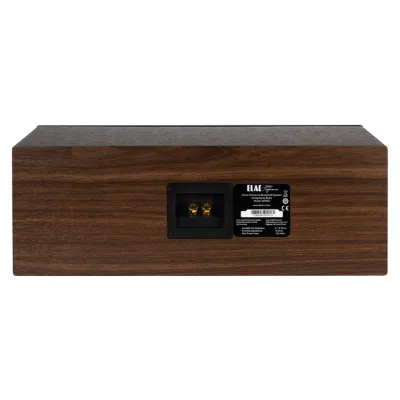

The cabinet is made of CARB2-certified MDF and uses perimeter bracing linking the top, bottom and side panels, which reduces wall vibration and with it colouration of the sound. The drivers are mounted on a cast basket that increases mounting rigidity, stiffens the front baffle and suppresses resonances of the chassis itself. The aramid cone offers greater stiffness and internal damping than polypropylene or paper. Connection is via metal 5-way binding posts.
Bass output is handled by a pair of double-flared slot ports, which reduce airflow and the noise associated with it while contributing to higher bass output and better low-end dynamics. The new waveguide, combined with a more open grille design, improves response in the upper treble. The result is intelligible reproduction of speech passages, stable localisation of dialogue at the centre of the scene and a seamless match with the DFR52 floorstanders or DBR62 bookshelf models.
Dimensions of 185 × 527 × 242 mm and a weight of 10.1 kg suit placement beneath a television or on furniture. The cabinet finish with a contrasting lacquered front baffle follows the visual language of the entire Debut Reference series.
| Rated output | 120 W |
|---|---|
| Frequency response | 55 Hz – 35 000 Hz |
| Type | 2-way, bass-reflex |
| Bass Driver | 2 × 5-1/4" aramid fibre (Aramid Fibre) |
| Sensitivity | 87 dB @ 2,83 V / 1 m |
| Crossover frequency | 2200 Hz |
| Impedance | 8 Ω |
| Port | 2× double flared |
| Tweeter | 1" fabric dome (Soft Dome) |
