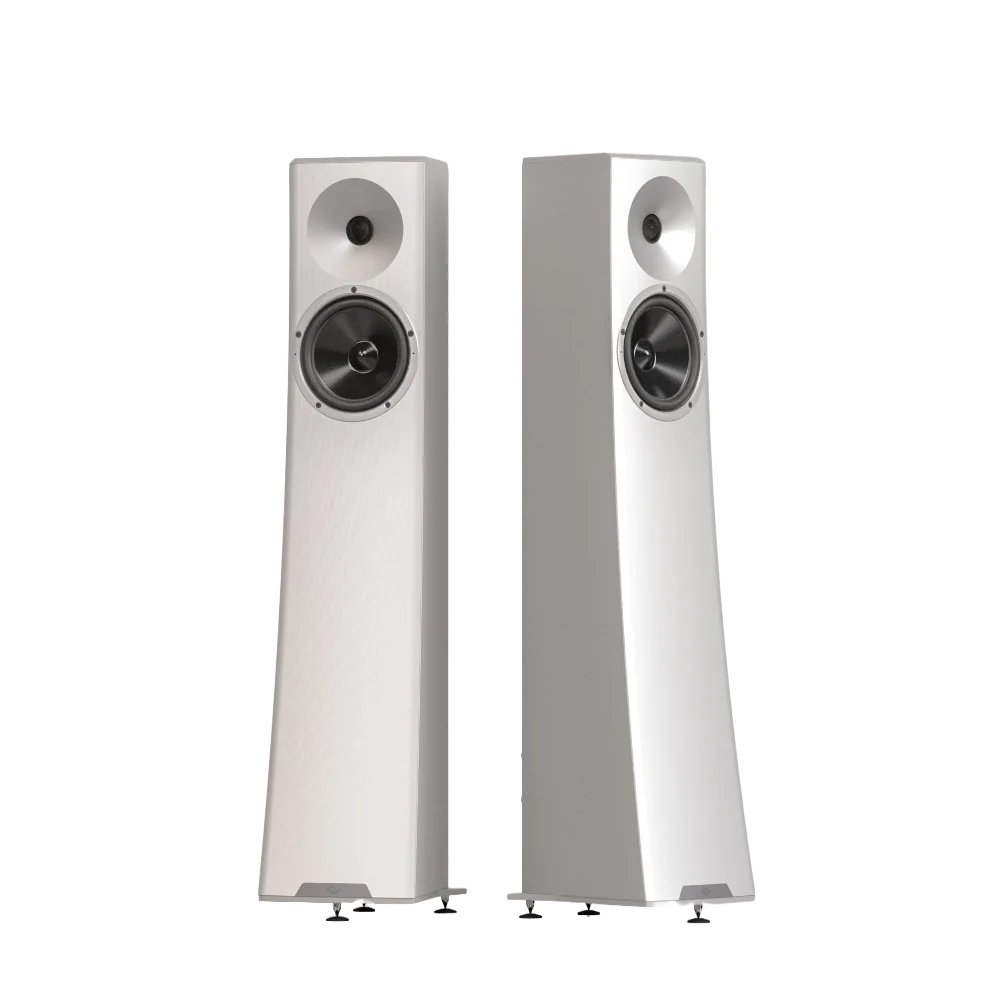

Floorstanding speaker YG Acoustics Carmel 3

38 800,00 € for pair with VAT 20%

Description

Two-way floorstanding loudspeaker with the hybrid Lattice tweeter and third-generation Ultracoherent crossover

The Carmel 3 is a two-way passive floorstanding loudspeaker from YG Acoustics' Reference line, engineered to deliver maximum accuracy and musicality in a compact format. Technologies developed for the XV, Sonja and Hailey models are carried over into a cabinet measuring 103 × 23 × 31 cm, which works acoustically even in small and medium-sized rooms. The construction is based on high-grade aircraft aluminium, machined in-house with a precision complemented by hand assembly at the facilities in Colorado and Cambridge.

The high frequencies are handled by an all-new 26 mm YG Lattice hybrid tweeter with an airframe made from a specially selected aerospace alloy, machined directly by the manufacturer. It delivers exceptionally low distortion across a wide frequency range and broad off-axis dispersion, which widens the optimal listening area. The 18.5 cm midwoofer uses a proprietary YG aluminium cone and a motor system with powerful neodymium magnets, increasing cone control and linearity at higher levels.

The dividing network is a third-generation Ultracoherent crossover with a crossover point of 1.75 kHz, optimised for phase matching, phase response and transient response. The relative phase between the drivers stays within a ±5° tolerance from 700 Hz to 3.3 kHz, i.e. across the entire range where the drivers' output overlaps within 25 dB. Custom-made capacitors, including pure metal foil types, foil resistors and damped inductors are used, while the circuit layout is computationally optimised to minimise interaction between components.

The result is usable response from 32 Hz to 40 kHz with low distortion throughout and precise unit-to-unit matching. Phase coherence between the drivers translates into stable imaging of instruments and an expansive soundstage, while the midwoofer's motor system supports dynamic range from subtle micro-detail to full crescendos. Sensitivity of 87 dB at an average impedance of 6 ohms (minimum 3.2 ohms) calls for an amplifier with ample current reserve.

Key features

  • Tweeter: 26 mm YG Lattice hybrid with aerospace airframe
  • Midwoofer: 18.5 cm aluminium cone, neodymium motor
  • Crossover: 3rd-generation Ultracoherent, 1.75 kHz crossover point
  • Phase accuracy: ±5° between drivers from 700 Hz to 3.3 kHz
  • Response: Usable output from 32 Hz to 40 kHz

Specification

Product code: p50_YGA_SPK_FLS

YG Acoustics

The American company YG Acoustics, founded in 2002, is one of the world’s most highly regarded brands in the category of ultimate high-end loudspeakers. The brand has made a name for itself through its uncompromising combination of computational modelling, cutting-edge science and precision engineering. Unlike most manufacturers, it rejects outsourcing and mass production – it operates its own state-of-the-art CNC facility in Colorado, where it manufactures chassis, its own drivers and the vast majority of precision components from solid blocks of aerospace-grade aluminium. YG Acoustics’ aim is to recreate the magical atmosphere and emotion of a live performance with absolute phase and frequency accuracy.

At the heart of YG Acoustics’ loudspeakers lie unique technologies developed in-house. The patented DualCoherent™ crossovers are the only ones in the world to optimise both a flat frequency response and zero relative phase simultaneously. The drivers utilise BilletCore™ technology for bass and midrange cones milled from a single piece of aluminium, and ForgeCore™ magnetic motors for the tweeters, whilst maintaining zero distortion. The clarity of the sound is complemented by ToroAir™ air dampers to eliminate crosstalk, and the FocusedElimination™ internal design, which removes standing waves without dynamic loss. YG Acoustics loudspeakers are designed for the most discerning listeners who demand absolute transparency, surgical precision and natural musicality without any ‘boxy’ colouration.
