Phono Preamplifier Soulution 350 Phono Stage
Description
Soulution 350 Phono Stage – two-stage active-passive RIAA equalisation with adjustable loading impedance
The 350 is a phono preamplifier designed for MC cartridges that addresses the fundamental task of vinyl replay – delivering the required gain while preserving linearity and phase accuracy. The signal is equalised to the RIAA specification in a two-stage active-passive architecture, while the adjustable loading impedance from 10 to 1260 Ω allows precise matching to any given cartridge. Control is handled from the front panel or by remote.
The equalisation networks use high-quality passive components with tight tolerances, ensuring the accuracy of the required time constants. Gain is provided by three wide-bandwidth, low-noise amplification stages with a total gain of 60 dB on the single-ended and 66 dB on the balanced output. Deviation from the RIAA curve within 20 Hz – 20 kHz does not exceed ±0.2 dB and the frequency response extends to 2 MHz (-3 dB).
Power comes from a switch-mode supply complemented by fast DC-DC converters and low-noise linear regulators. This approach provides more stable and cleaner supply voltages than conventional alternatives, which shows in a noise floor below -160 dBV/sqrt(Hz) and distortion under 0.001 %. The low noise level and precise RIAA equalisation contribute to the legibility of fine groove detail, stable imaging of instruments and undamaged dynamics.

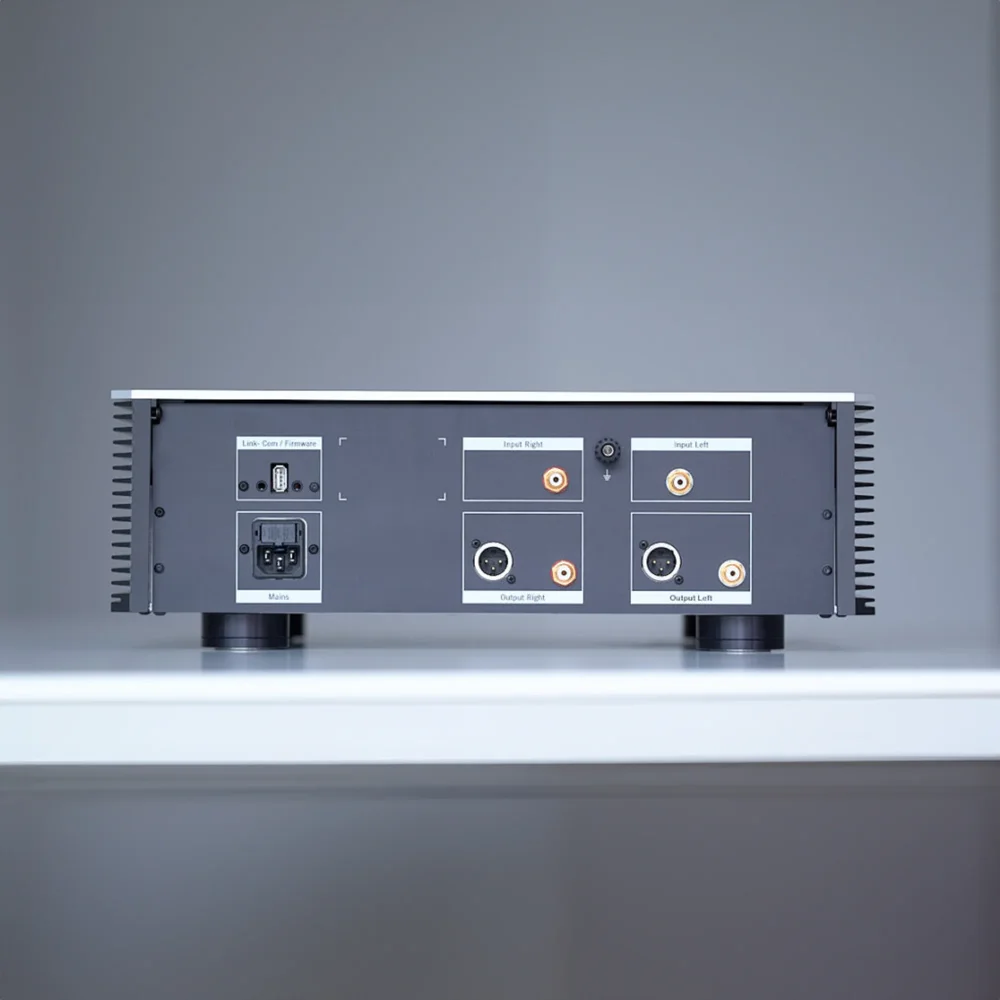

The unit features one single-ended phono input (RCA) and a pair of outputs – balanced XLR with an output impedance of 10 Ω and single-ended RCA with 5 Ω. Configuration is handled via three buttons and a rotary control on the front panel, while the LINK connectors (3.5 mm jack) allow remote power-up within a system. The chassis measures 430 × 350 × 142 mm and weighs approximately 10 kg.
Key features
- RIAA equalisation: Two-stage active-passive, deviation under ±0.2 dB
- Gain: 60 dB RCA, 66 dB XLR at 1 kHz
- Loading impedance: Continuous adjustment from 10 to 1260 Ω for MC cartridges
- Power supply: Switch-mode supply with DC-DC converters and linear regulators
- Noise and distortion: Below -160 dBV/sqrt(Hz), THD under 0.001 %
Specification
| Input impedance | 10 Ω symetrická (XLR), 10 Ω nesymetrická (RCA) |
|---|---|
| Power consumption | < 0,5 W v pohotovostnom režime (standby) / 100 W prístroj v prevádzke |
| Inputs | 2 × RCA (konfigurovateľné pre MC/MM) |
| Outputs | 1 × symetrický (XLR), 1 × nesymetrický (RCA) |
| Transmission range (±3 dB) | 0 – 1 MHz (RIAA ekvalizácia) |
| Signal-to-noise ratio | 100 dB |
| Output maximum voltage | 11 VRMS symetrické (XLR), 5.5 VRMS nesymetrické (RCA) |
| Channel separation | 60 dB @ 1 kHz |
| Dimensions (W × H × D) | 442 × 143 × 448 mm |
| Mains Supply | 220 – 240 V (50 – 60 Hz) / 100 – 120 V (50 – 60 Hz) |
| THD + N | < 0.002% (20 Hz – 20 kHz) |
| Output current max | 0,2 A (limitovaný) |
| LINK (remote turn-on) | 12 V riadiaci signál |
| MC | + 66 dB @ 1 kHz (XLR) / + 60 dB @ 1 kHz (RCA) |
| MM | + 55 dB @ 1 kHz (XLR) / + 49 dB @ 1 kHz (RCA) |
Soulution
Swiss manufacturer Soulution Audio represents the pinnacle of ultra-high-end audio engineering. The brand was founded in Dulliken, Switzerland, by Cyrill Hammer and Roland Manz, managing directors of Spemot—a renowned Swiss precision engineering firm specialized in electric motors and custom electronics. Driven by a passion for music and a desire to transcend the limitations of existing reference equipment, they set out to create audio electronics characterized by extreme speed, surgical accuracy, infinite dynamic scaling, and zero tonal coloration.
Leveraging Swiss manufacturing expertise alongside an elite team of engineers, Soulution officially launched its reference line of amplifiers, preamplifiers, and digital sources around 2005–2006. Soulution components incorporate ultra-fast circuit topologies, massive power supplies, and uncompromising current control, allowing loudspeakers to reveal the subtle micro-details of a recording with effortless naturalness. Hand-built in Switzerland to exacting standards, Soulution products are designed for audiophiles who demand absolute sonic truth, uncompromised signal purity, and sovereign speaker control.
